Andaman 52

Setting the standards in fast cruising catamaran


Description

Designed for adventure and deep sea travel, the Andaman 52 incorporates the latest fiber technologies with Kevlar and Basalt, resulting in a light, robust, and efficient boat.

Offered in a Race version, with carbon mast and Onessails, it aims to sail fast and far across the ocean.

All the options for comfort are available (air conditioning, several fridge, hot water, Li-ion batteries, converter / isolator, High-End sound system, BBQ ...).

Equipments has been optimized to obtain easy technical maintenance, and the construction is carried out according to EC directives by an exclusive process called anti-osmosis, anti-delamination.

Thus provided, the ANDAMAN 52 is a lively and dynamic boat for the open sea or even further …

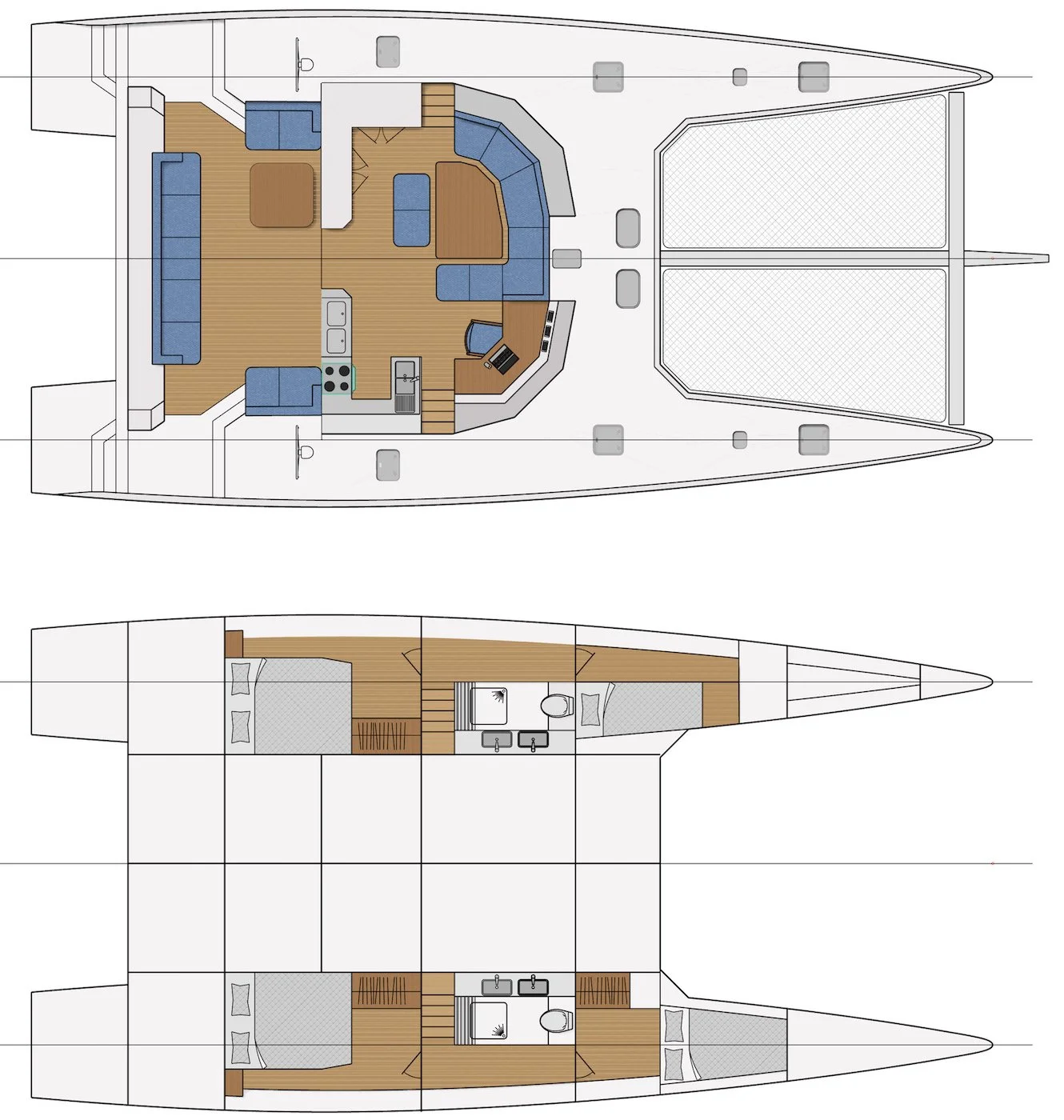

Characteristics and plans

    • Multiaxial BASALT fibers with kevlar reinforcements

    • PVC & PET foam cores

    • Epoxy and vinylester resins only

    • INFUSION process

    • LOA: 17,0 m.

    • LWL: 15,85 m.

    • Beam: 8,10 m

    • Light displacement: 10,5 tons

    • draft: 1,45 m

    • Mast: 21 m

    • Main sail: 92 sqm.

    • Self-tacking jib: 43 sqm.

    • Genoa: 65 sqm

    • Code 0: 125 sqm

    • Genaker: 150 sqm

    • Saildrive: 2x15kW OR

    • Shaft: 2x20 to 2x40 kW

    • Batteries: 34 to 84 kWh LFP

    • 4 cabins with independent or shared bathrooms

    • Owner suite version

    • Cabins crew and shower/toilet in the 2 front peaks

    • Fresh water: 2x300l.

    • Fuel: 400 l. Methanol

    • Black tanks: 2x60 l.

    • Watermaker 100l/h

  • Several options:

    • Smart LCD glazing for privacy in cockpit and cabins

    • Solar panels: up to 18 sqm

    • Carbon mast, boom and wheels
